Permanent Leakage Solutions for Concrete Structures

Immersive technical visualizer. Scroll down to trigger the high-pressure structural injection and watch the water seepage seal.

Talk to an Engineer
INGRESS VELOCITY DETECTED
STATUS: ACTIVE INGRESS (100% PRESSURE)
Interactive Cross-Section

Interactive Leak Anatomy Model

Hover or click on the glowing hotspots to explore the structural segments and diagnostic markers of a compromised slab.

Structural Diagnostic Node

Click or hover over any flashing coordinate node inside the concrete cross-section model to analyze its structural properties and repair implications.

Physical Diagnostics

Why Concrete Leakage Occurs

Concrete is structurally porous. Click any structural threat node in our network schematic to view the engineering triggers of water ingress.

CONCRETE THREATS Settlement Pressure Shrinkage Joints Corrosion Deficient

Structural Threat Analysis

Select any structural threat node on the spider schematic network to inspect its engineering causes, consequences, and sealant strategies.

Workflow Pipeline

Diagnostic & Repair Workflow

Our structured engineering methodology ensures structural defects are identified, treated, and validated permanently.

01

Inspection

Comprehensive physical structural inspection and moisture mapping.

02

Diagnosis

Identifying ingress channels and evaluating pressure forces.

03

Analysis

Engineering assessment of loads and material selection.

04

Selection

Defining packer placements and chemical resin types.

05

Execution

High-pressure injection and chemical resin monitoring.

06

Validation

Ultrasonic check to verify core stabilization.

Advanced Methodologies

Interactive Repair Technologies

Click on any panel to expand its technical profile, cross-sectional schematic, and recommended structural applications.

METHOD 01

Structural Epoxy Injection

Epoxy injection is utilized to restore structural integrity to cracked concrete. Low-viscosity epoxy is pressurized into dry or dormant cracks, fusing the concrete surfaces back together with a bond stronger than the concrete itself.

Recommended For
  • Load-bearing floor slabs & beams
  • Structural foundation walls
  • Dormant drying shrinkage cracks
Specifications
  • Tensile Strength: > 50 MPa
  • Bond Strength: Exceeds Concrete
  • Viscosity: Super-low (injectable)

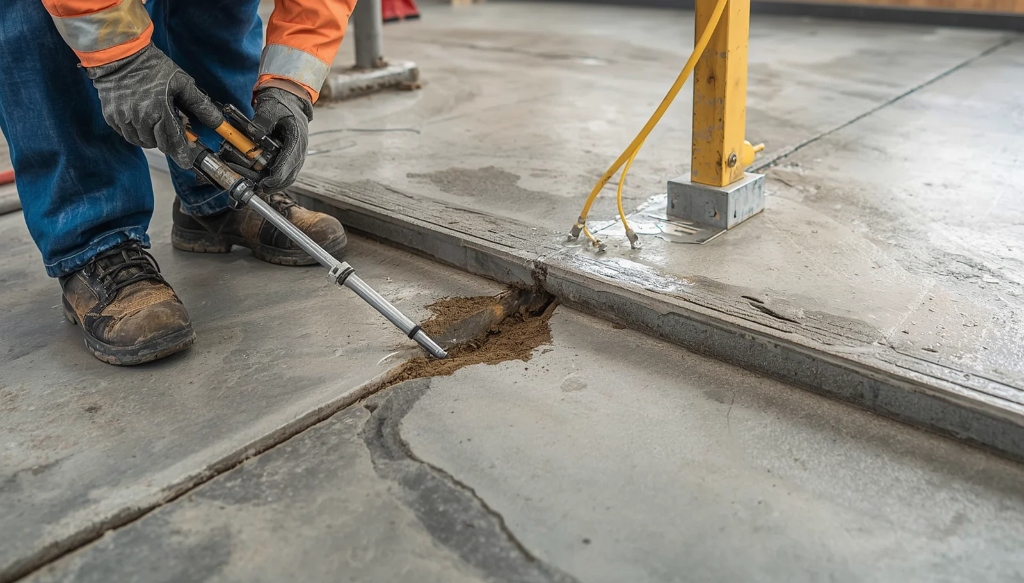

Structural Epoxy Injection Lance and Crack Preparation
METHOD 02

Polyurethane (PU) Injection

Specially formulated hydrophobic polyurethane is pressurized into cracks. Upon contacting moisture, the resin reacts and expands up to 20-30 times its volume, creating a tough, flexible foam barrier that instantly halts active water leaks.

Recommended For
  • Active water leaks under pressure
  • Expansion joints & movement zones
  • Subterranean pipelines & manholes
Specifications
  • Volumetric Expansion: 20x - 30x
  • Flexibility: Accommodates movement
  • Reaction Time: < 60 seconds
High-Pressure Polyurethane Grout Injection Packer
METHOD 03

Crystalline Waterproofing

Active chemicals react with concrete moisture and concrete carbonation components to form insoluble crystalline structures inside capillary tracts and micro-cracks. This makes the concrete itself an active, self-healing waterproof barrier.

Recommended For
  • General concrete surface protection
  • Water reservoirs & sewage tanks
  • Wet-side foundation retaining walls
Specifications
  • Crystalline Depth: Up to 12 inches
  • Self-Healing capability: Up to 0.4mm
  • Chemical Resistance: pH 3 to 11

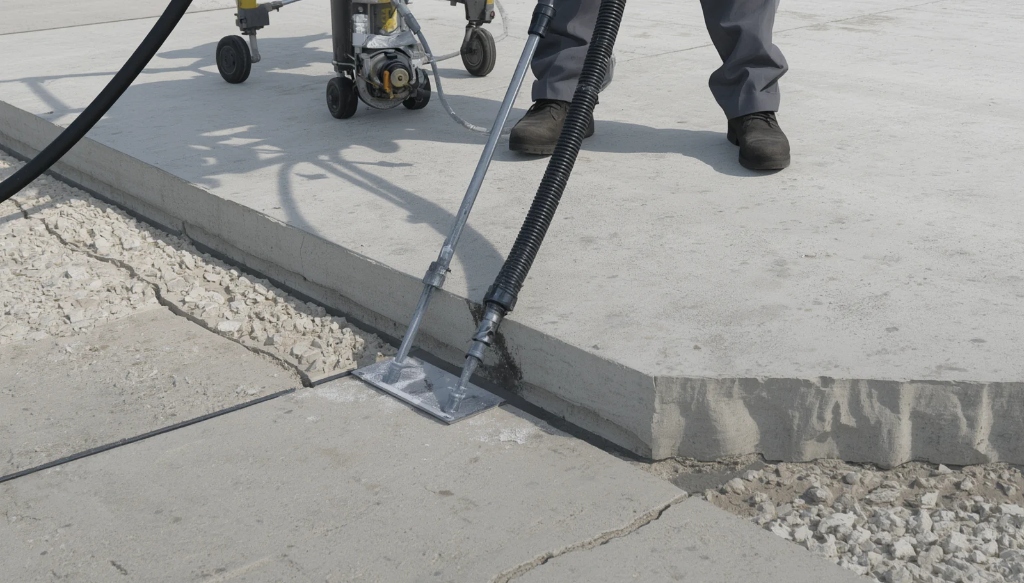

Crystalline Active Protection and Concrete Joint Sealing
Technology Matrix

Engineering Comparison Matrix

Compare the core specifications and recommended environments for each concrete rehabilitation method.

Technology Method Works with Active Leak Restores Strength Handles Movement Service Life Primary Application
Epoxy Resin Injection ✕ (No) ✔ (Exceeds concrete) ✕ (Rigid joint) Permanent (Bonded) Load-bearing concrete beams, slabs, column cracks
Polyurethane (PU) Injection ✔ (Reacts & stops flow) Partial (Matrix fill) ✔ (Highly flexible) 10 - 15+ Years Wet joints, basements, elevator shafts, manholes
Crystalline Waterproofing No (requires dry surface) ✕ (Surface barrier) ✕ (Rigid coating) Lifetime of concrete Concrete storage basins, mass containment, brick walls
Results visualizer

Before & After Transformation

Drag the slider to compare concrete slabs suffering from active seepage vs repaired, dry concrete post-injection. Notice how the metrics update in real-time as the slider moves.

ACTIVE SEEPAGE
Active Water Ingress
WATERTIGHT INJECTION
Watertight Structural Repair

Diagnostic Measurements

Water Ingress Control 60%
Structural Integrity 71%
Slab Durability 62%
Operational Risk 47%
Asset Protection

Industries & Facilities Served

We protect concrete infrastructure across critical commercial, industrial, utility, and institutional sectors.

C.B.S. TECH Commercial Industrial Manufacturing Residential Hospitals Education Water Corporate

Structural Sector Targets

Click any node on the interactive network map to view concrete protection parameters, structural scopes, and key deliverables for that industry.

Why C.B.S. Tech

The Engineering Advantage

We approach structural waterproofing challenges with diagnostic testing, evidence-based methods, and professional execution.

98%

Engineering-Led

Strategies designed by structural engineers prioritizing safety and stability.

100%

Root-Cause Diagnosis

Comprehensive test methodologies to isolate the source of leak paths.

0%

Minimal Disruption

High-pressure injection requires no excavation, avoiding costly shutdown cycles.

Technical Q&A

Frequently Asked Questions

Engineering responses to structural leak sealing, chemical packers, and injection methods.

How do you determine the correct injection packer spacing? +
Packer spacing is calculated based on concrete thickness. As a rule of thumb, ports are drilled at a 45-degree angle to intersect the crack in the center of the slab, with spacing equal to half the slab thickness (e.g., if the slab is 300mm thick, packers are placed every 150mm alternately).
Is polyurethane injection suitable for drinking water structures? +
Yes. We utilize specialized hydrophobic polyurethane injection resins that are certified for contact with drinking water (compliant with sanitary and environmental standards), ensuring no toxins leach into the water storage network.
What is the difference between epoxy and polyurethane injection? +
Epoxy is a structural adhesive used to fuse dry/dormant concrete cracks back together to restore tensile strength. Polyurethane is an expanding elastic sealant used to shut down active water ingress and accommodate ongoing joint movement.
Project Briefing

Protect Your Asset Integrity Before Minor Leaks Become Major Structural Defects

Every project begins with a diagnostics map. Brief our structural engineers on the leakage challenges of your concrete asset.
